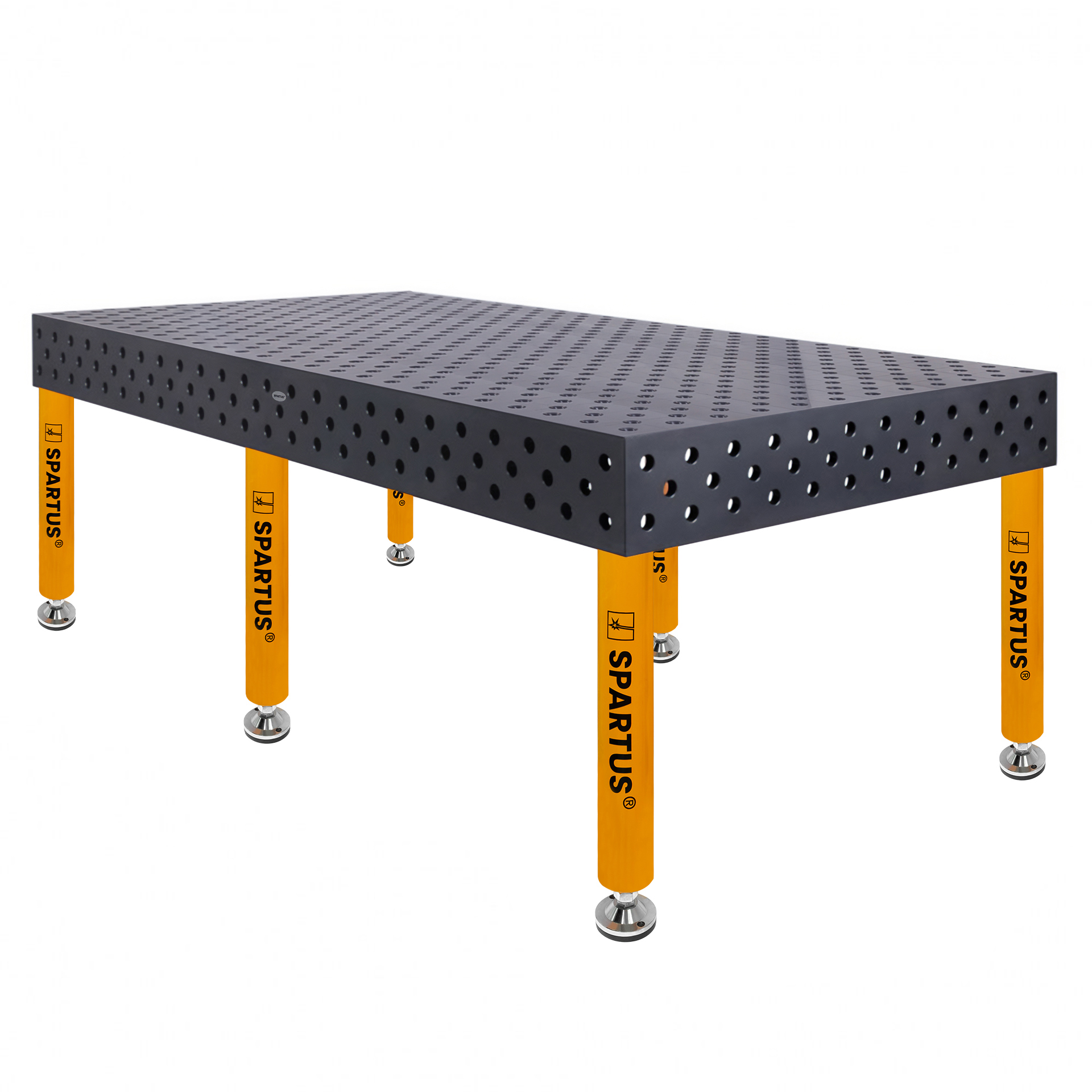

MAXIMUS Stationary Welding Tables – D28 System

ENSURE LASTING SUPPORT WITH MAXIMUS TABLES!

The SPARTUS Maximus welding table is designed for the most demanding applications, where maximum stability, durability, and precision in positioning components are essential. Made from the highest-quality materials, it offers unlimited possibilities for configuring the workstation. Thanks to its solid construction and excellent resistance to deformation, the SPARTUS Maximus table ensures reliability even under intensive use, enabling perfect welding results every single day.

S355J2+N Steel with Nitrided Surface – Maximum Protection and Durability

SPARTUS Maximus is made of S355J2+N structural steel, which provides exceptional mechanical strength and resistance to impacts and deformation. Additionally, the worktop has undergone a plasma nitriding process, which significantly increases its resistance to corrosion, wear, and welding spatter. As a result, the table maintains its properties and aesthetic appearance for a long time, even under intensive use in demanding industrial environments.

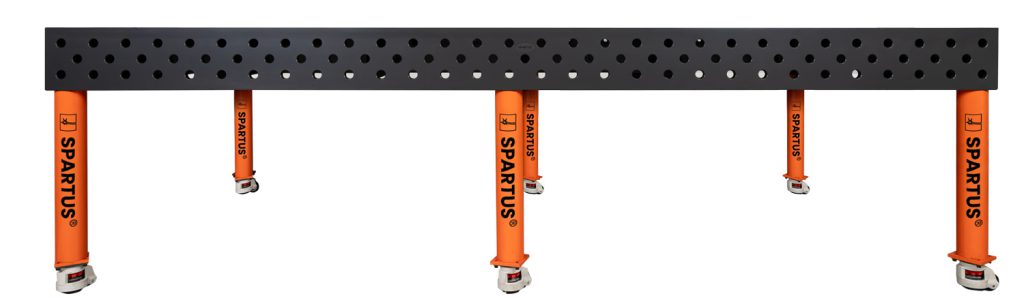

200mm modular 3D side

SPARTUS MAXIMUS D28 tables are equipped with a 200mm wide modular 3D side, allowing you to build structures along three axes simultaneously. It enables you to: expand the working surface, mount vertical and angled components, create dedicated assembly setups, and adapt the table shape to specific projects. The wide 3D side ensures excellent stability and full compatibility with D28 accessories — making it one of the key elements of the system for professionals.

D28 System – Compatibility and Mounting Precision

SPARTUS HERMES welding tables use the D28 hole system — a grid of 28 mm diameter holes, drilled and milled with the highest precision. This design ensures full compatibility with D28 system accessories and allows for quick and accurate clamping of components in any configuration. It’s a reliable solution for those who value flexibility and precision in everyday workshop operations.

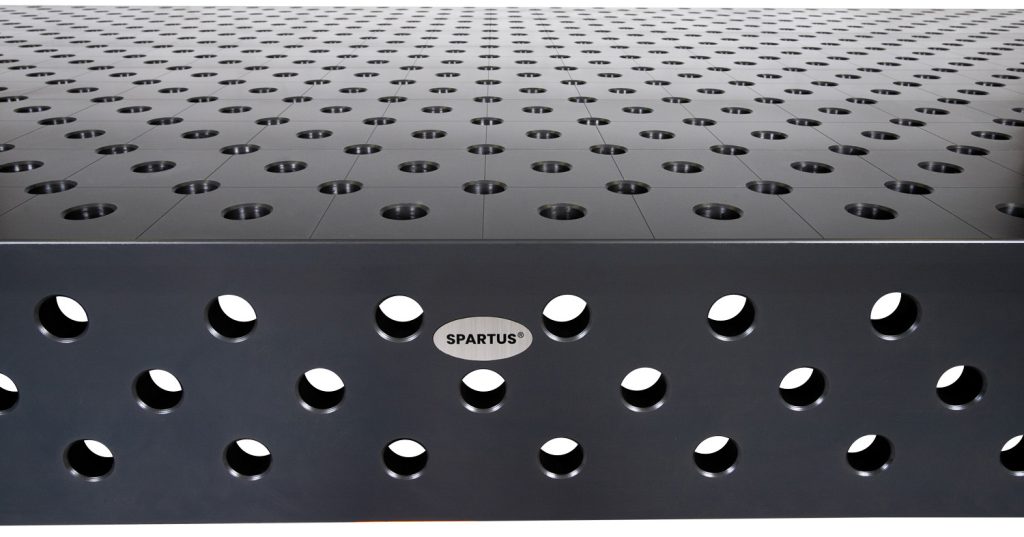

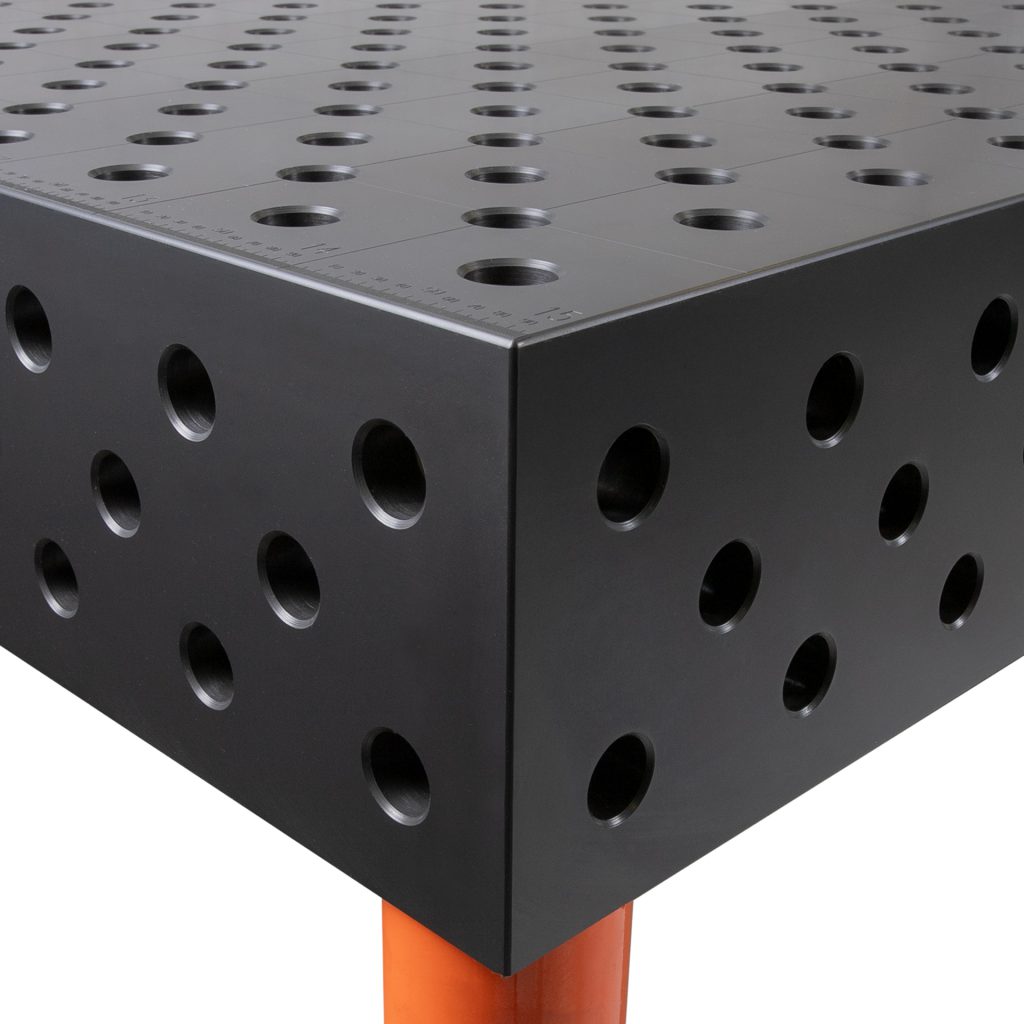

Diagonal grid – maximum setup precision and geometry control

The SPARTUS MAXIMUS D28 table with a diagonal grid greatly expands positioning capabilities. The layout of angled lines makes it possible to determine angles, symmetry axes, and construction directions quickly and extremely accurately. This makes the table perfect for tasks requiring precise geometry — such as building frames, spatial segments, bent profiles, or tubular structures. The diagonal grid also helps control deviations and torsion, increasing repeatability and minimizing assembly errors. It is a solution that significantly improves workflow wherever flawless alignment and geometry are essential.

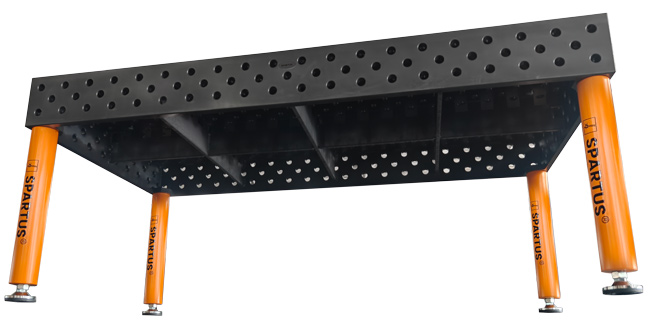

Reinforced ribbing – maximum structural rigidity

Beneath the working surface of the SPARTUS MAXIMUS tables lies a solid, precisely engineered ribbing structure that significantly increases the rigidity of the entire table. Densely spaced ribs eliminate the risk of bending and deformation, ensuring tabletop stability even under heavy loads or when working with large steel components. The table maintains flatness at the level of 0.1mm / 1000mm, meeting strict industrial requirements. Such accuracy provides ideal conditions for positioning components with high geometric precision.

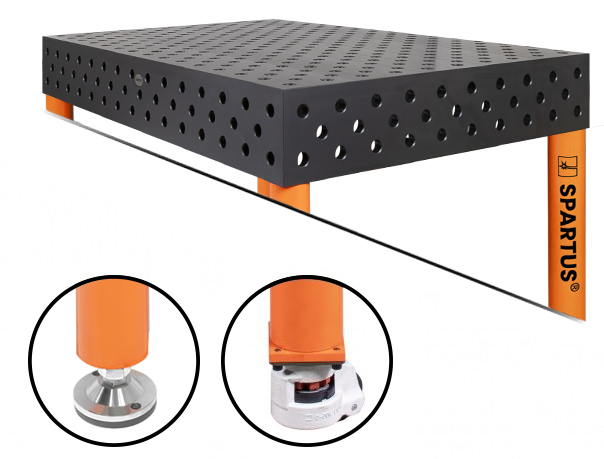

Flexible Base Configuration

SPARTUS MAXIMUS welding tables are available with two leg variants: with a fixed foot or with a caster wheel. The fixed-foot version provides maximum stability and a secure base during intensive work, while the caster-wheel version allows for easy movement of the table within the workshop. Both options affect the final height of the table, so selecting the appropriate variant allows you to tailor the workstation to your individual needs and working conditions.

	standard legs	legs with castors
Leg length	650mm	550mm
Table Height	850mm	870mm

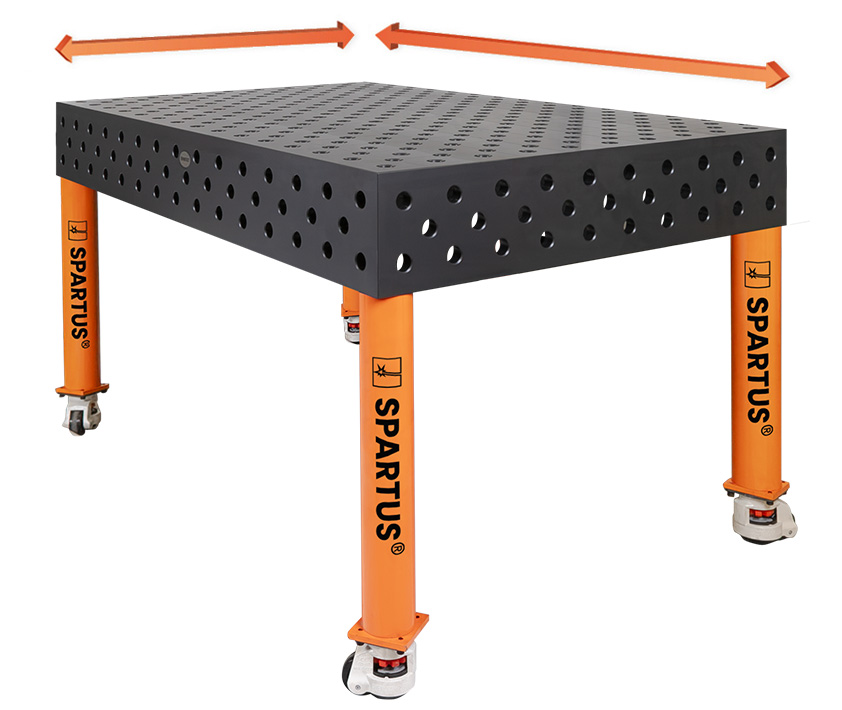

Various Worktop Sizes – Customize the Table to Your Needs

SPARTUS MAXIMUS welding tables are available in several practical size variants, allowing for a perfect fit to the specific requirements and dimensions of the workstation. The available worktop sizes are: 1500×1000 mm, 2000×1000 mm, 2400×1200 mm, and 3000×1500 mm. This variety enables optimal use of workshop space and ensures comfortable work regardless of the size of the welded components.

Technical Specifications
